Show the team at work in your app

This page is for developers. A person trusts a team more when they see who is working. The SDK draws the team, or the workflow, from what is saved in the Studio, and lights it up during an execution.

Nothing about the team is written in your application. The members, their icons and their groups come from the team editor. Change the team in the Studio, and the drawing follows.

• A conversation that works. See List solutions and start an execution from your app.
• The controller and the executionId of that page.

Three things are needed: the team as it is saved, the state of each member during the execution, and the component.

import { useEffect, useMemo, useState } from 'react';
import {
  TeamGraph,
  TeamRoster,
  teamHubMemberId,
  teamMembersFromStructure,
  useAgentivityClient,
  useExecutionStatuses,
  type ChatController,
  type TeamStructure,
} from '@agentivity-labs/sdk-react';

export function TeamPanel({ teamId, executionId, controller }: { teamId: string; executionId?: string; controller: ChatController }) {
  const client = useAgentivityClient();

  // 1. The team as saved in the Studio.
  const [team, setTeam] = useState<TeamStructure>();
  useEffect(() => {
    client.entities.fetchTeam(teamId).then(setTeam);
  }, [client, teamId]);
  const members = useMemo(() => (team ? teamMembersFromStructure(team) : []), [team]);

  // 2. Who is working, and who is done.
  const { members: statuses } = useExecutionStatuses(executionId, { controller });

  // 3. The drawings.
  return (
    <>
      <TeamRoster controller={controller} members={members} statuses={statuses} />
      <TeamGraph controller={controller} members={members} hubMemberId={team ? teamHubMemberId(team) : undefined} statuses={statuses} />
    </>
  );
}

For a workflow, the shape is the same: client.entities.fetchWorkflowGraph(id) gives the structure, and WorkflowGraph takes it in structure, with the nodes part of the statuses.

• The state comes from the server, not from the stream. useExecutionStatuses reads the state of the execution from the server. So the drawing is right on a new execution, after a lost connection, and when a person reopens an old conversation.
• The same hook says whether an execution is in progress. It returns running. Give it to ChatDiscussion to show the stop button at the right time.
• The icons and colours are those of the team editor. To use your own pictures, give a function in resolveMemberAvatar.
• The drawing takes the width you give it and sets its own height. Put it in a column.

TemplateGraph needs no server and no execution. Give it a Template file, and it draws the team or the workflow inside.

import { TemplateGraph } from '@agentivity-labs/sdk-react';
import '@agentivity-labs/sdk-react/styles.css';

<TemplateGraph source={template} autoplay />;

autoplay lights the members up one after the other, as an execution would. It does not play for a visitor who asked their system for less motion.

For a page that is not built with React, the SDK also builds one script with a ready-made element, agentivity-graph. See scripts/build-standalone.mjs in the SDK.

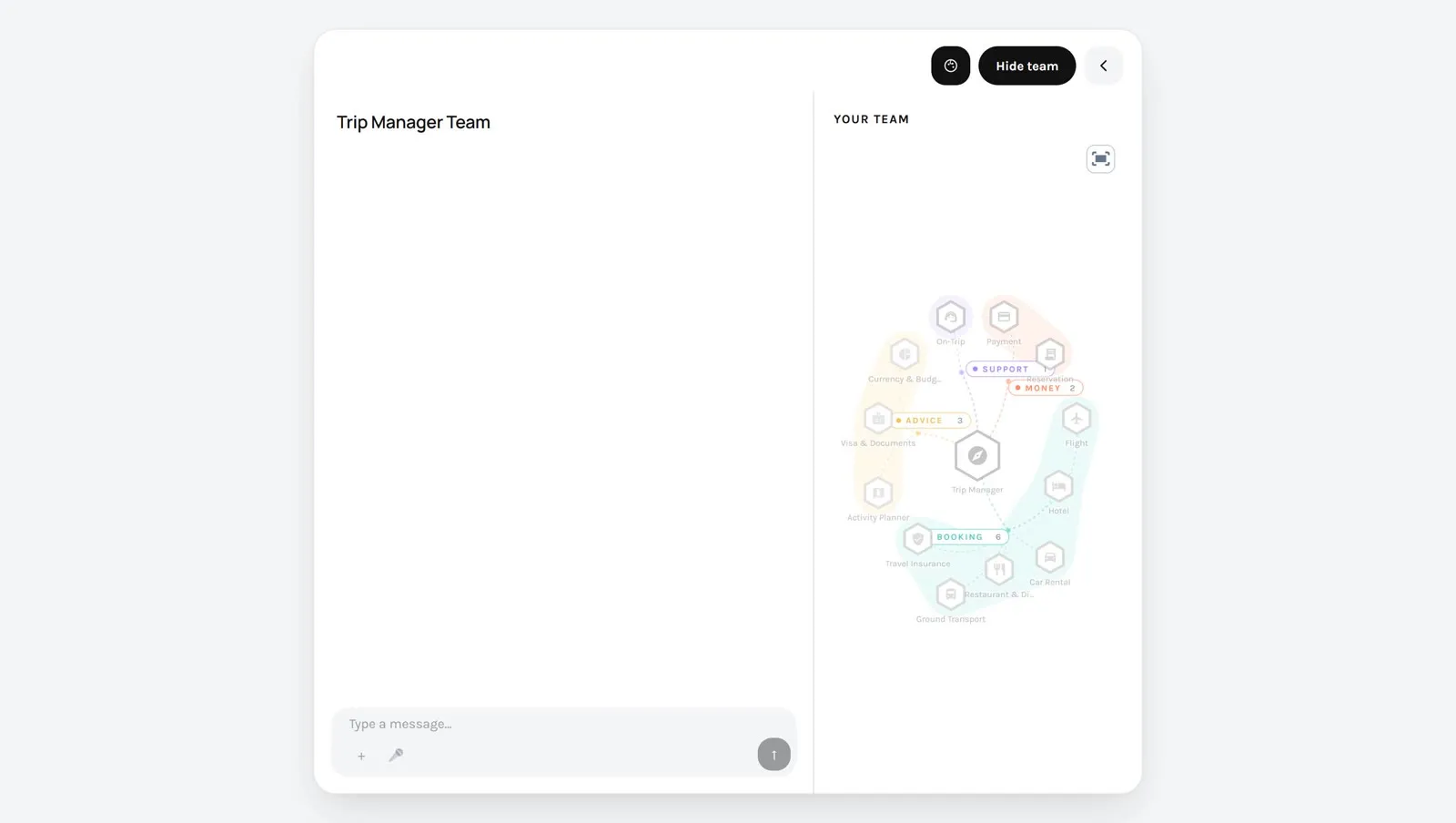

• src/screens/TripChat.tsx in the Trip Planner: a roster above the chat, and a team panel that opens beside it or as a screen of its own on a phone.
• src/App.tsx in the portal: the choice between the team view and the workflow view.
• The section “Graphs from JSON” of the README of the SDK, for every option of TemplateGraph.
